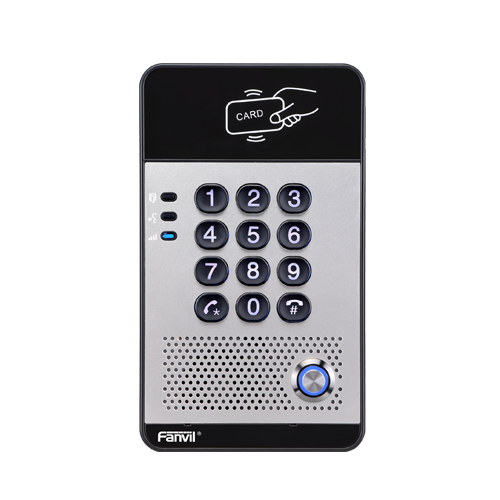

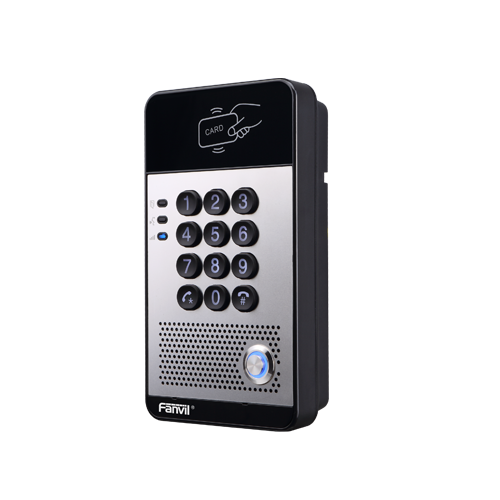

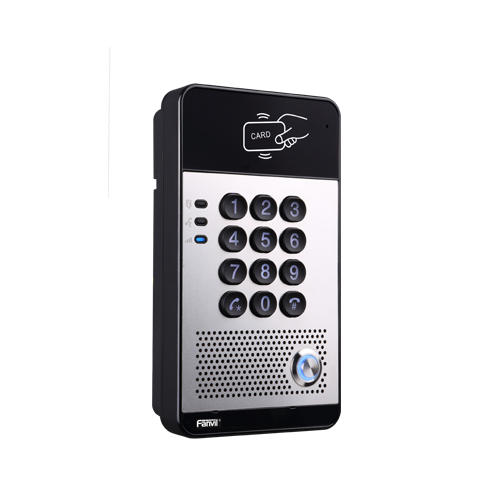

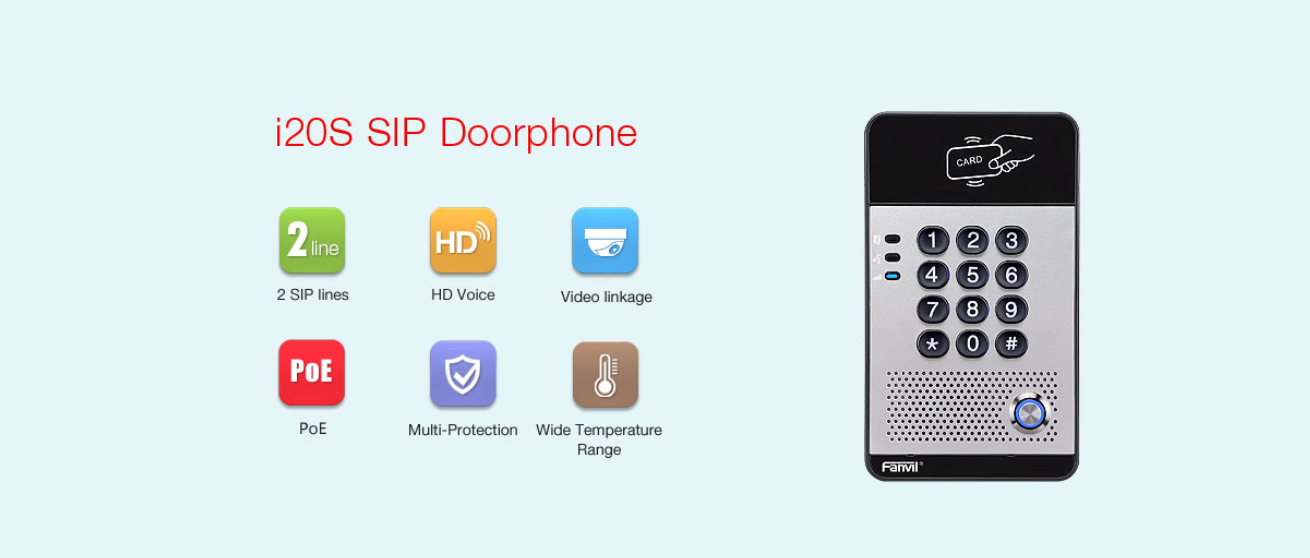

Fanvil i20S IP Intercom w/ RFID

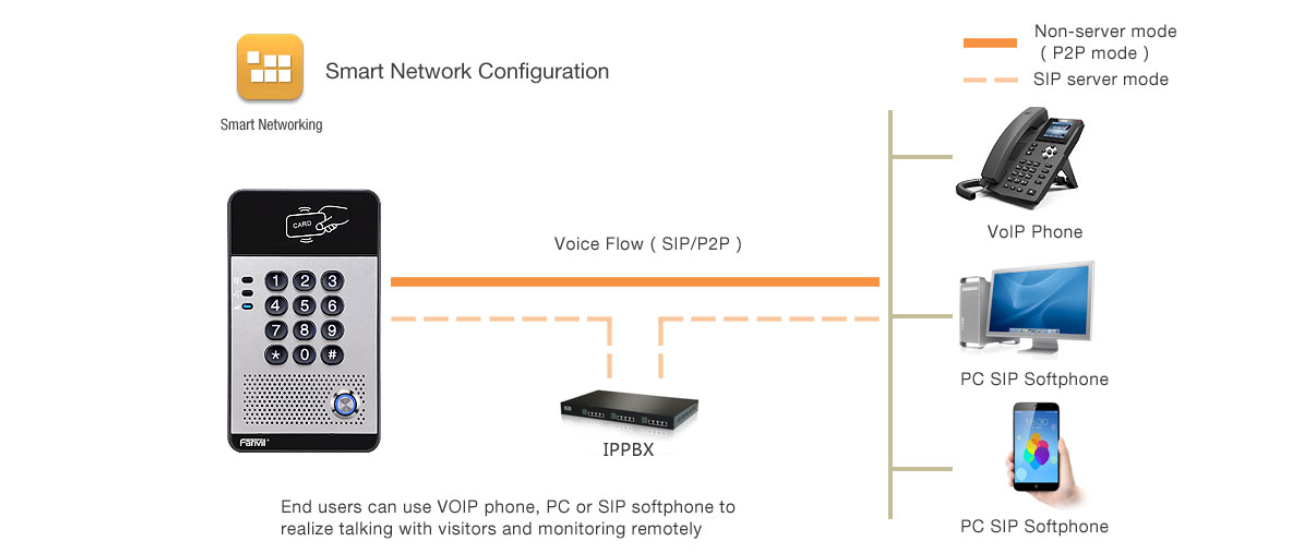

Fanvil i20S is a network-enabled intercom with built-in 125 kHz RFID card reader for simple, secure access control and door entry. Fanvil i20S runs the open SIP protocol, which means you can have broad choice of VoIP platforms to use, including 3CX, BroadSoft, Asterisk, Xorcom, and Huawei. Running SIP makes i20S easier to manage than traditional door phones. The full-duplex intercom gives you wideband audio for easier to understand calls.

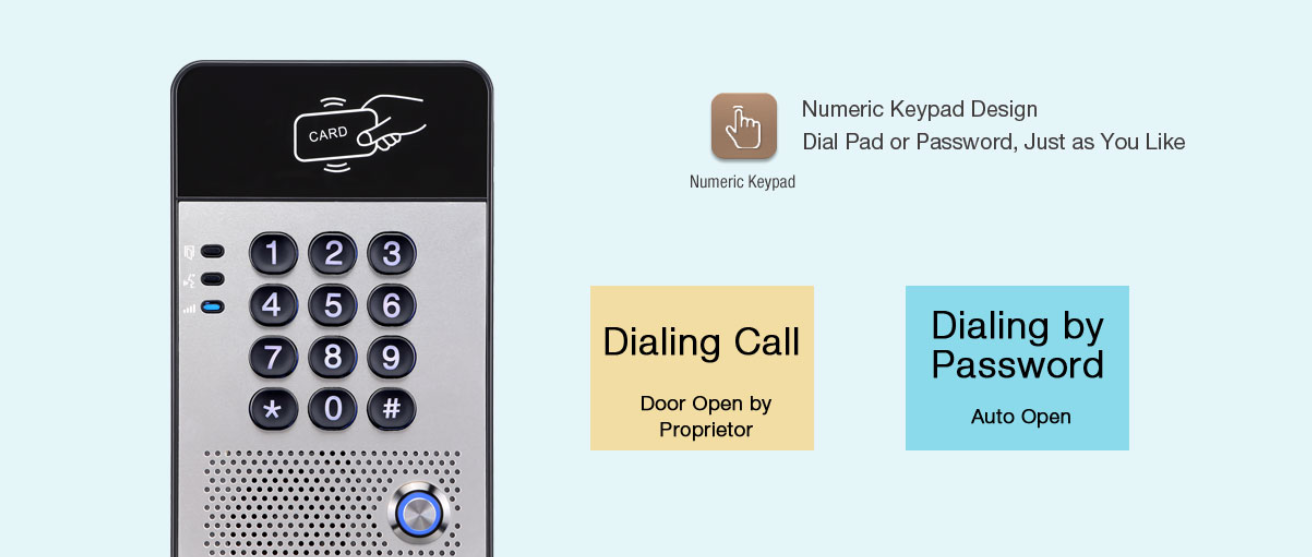

Fanvil i20S has a clear, easy to read keypad for dialing numbers. Up to 500 numbers and 500 RFID cards can be stored. It has a 3W speaker for clearly broadcasting audio. The single Fast Ethernet port supports PoE for powering the intercom through the network. Fanvil includes professional security and networking features like 802.1x authentication, Open VPN support, and DSCP Quality of Service control.

More Information Below:

Data Sheet

User Manual

Product Unboxing

123
Generic
– 2 SIP Lines
– POE Enabled
– Full-duplex speakerphone (HF)

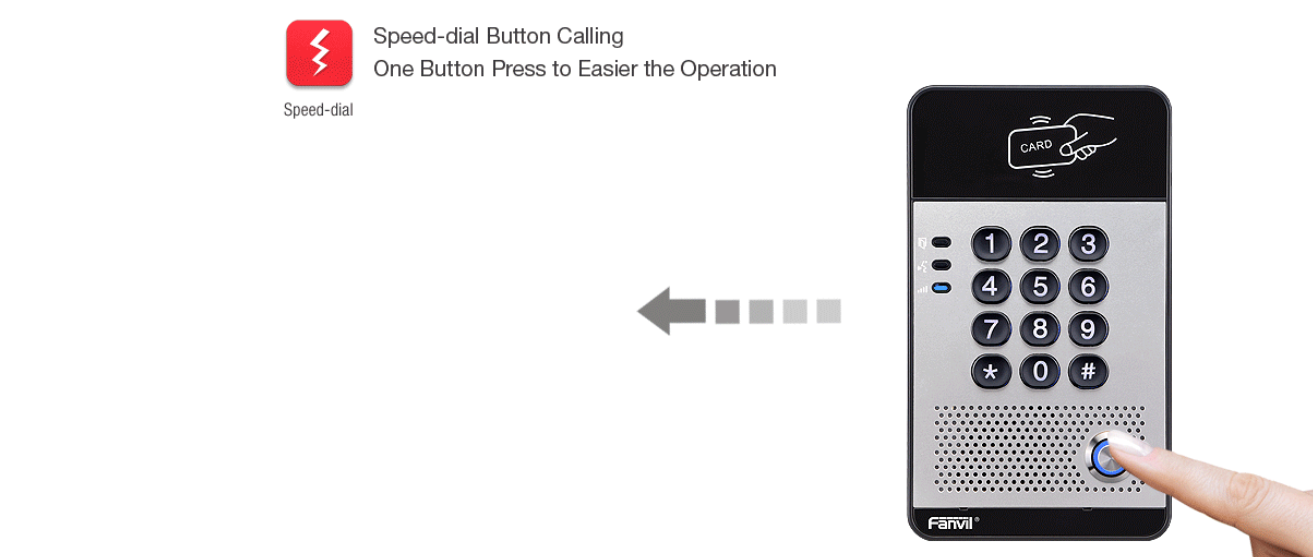

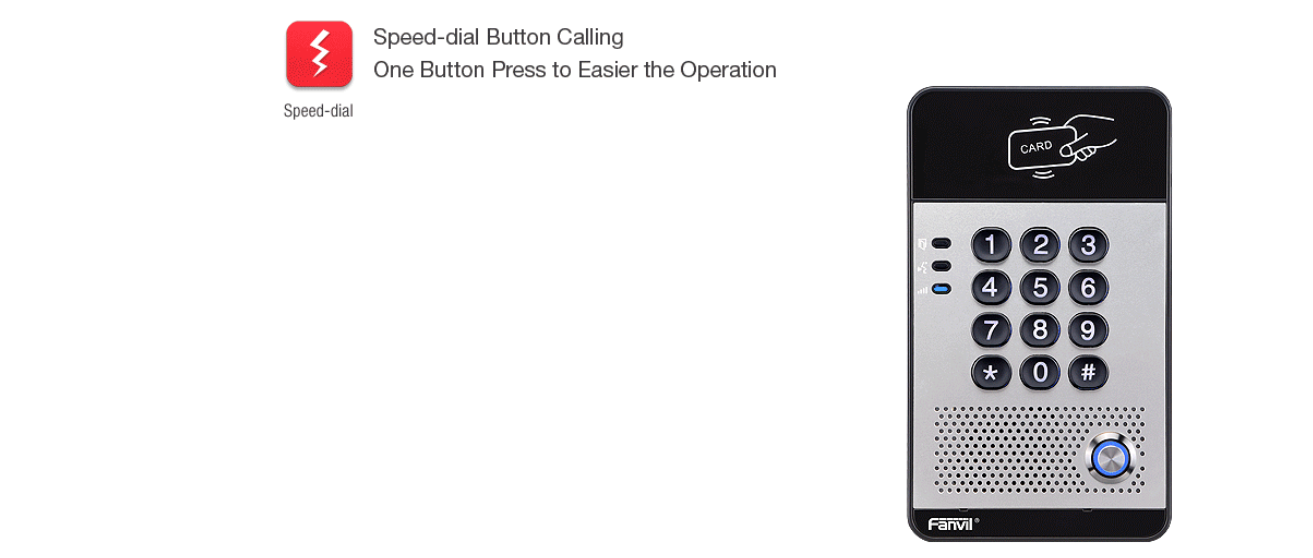

– Intelligent DSS Keys (Speed Dial)
– Wall-mount installation
– Integrated RFID Card reader
– Integrated indoor switchgear
– Integrated one Relay
– External Power Supply

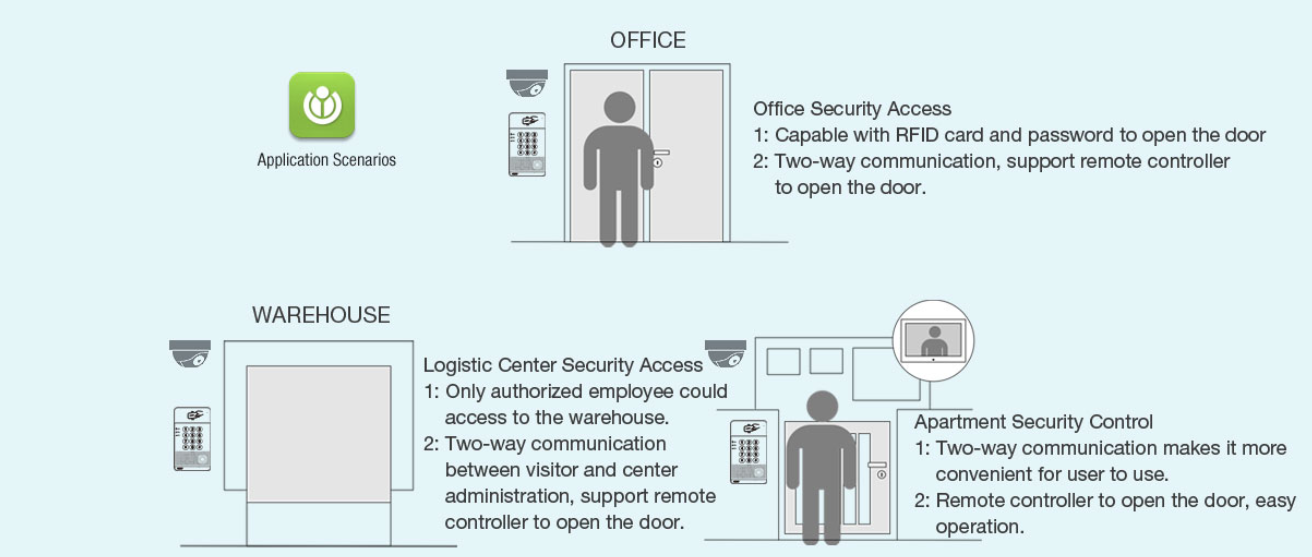

– All-in-One: Access Control, Intercom and – Broadcasting
– Access control-by call, code, RFID card
– Industrial Standard Certifications: IP65,

CE/FCC Call Features
– Intercom
– Speed Dial
– Auto-Answering (per line)
– Voice Message (on server)
– Local 3-way Conference
– Hot Line Phone Features
– Open Door Log
– Access Table (500 entries)
– Support RFID Card issues (500 entries)
– Programmable DSS/Soft keys
– Network Time Synchronization
– Action URL / Active URI Audio
– Narrowband CODEC: G.711a/u, G.723.1, G.726-32K, G.729AB
– Wideband CODEC: G.722
– Full-duplex Acoustic Echo Canceller (AEC) – Hands-free Mode, 96ms tail-length
– Voice Activity Detection (VAD) / Comfort – Noise Generation (CNG) / Background – Noise Estimation (BNE)
– Packet Loss Concealment (PLC)
– Dynamic Adaptive Jitter Buffer up to 300ms
– DTMF: In-band, Out-of-Band – DTMF-Relay (RFC2833) / SIP INFO

Networking
– 802.3af PoE
– IP Configuration: Static / DHCP / PPPoE
– Network Access Control: 802.1x
– VPN: L2TP / PPTP / IPSec
– VLAN: 802.1p/q

 – QoS: DSCP Protocols
– SIP2.0 over UDP / TCP /TLS
– RTP / RTCP /SRTP
– STUN
– DHCP
– PPPoE
– 802.1x
– Open VPN
– SNTP
– FTP / TFTP
– HTTP / HTTPS
– TR069 Deployment & Maintenance
– Auto-Provisioning via FTP / TFTP / HTTP / HTTPS / DHCP / TR069 / SIP PNP
– Web Management Portal
– Web-based Packet Dump
– Configuration Backup / Restore
– Entry Log Export
– Access Table Export / Import
– Firmware Upgrade
– Syslog(include door access logs) Physical

Specifications
– 1 DSS Key
– Numeric keypad
– WAN: 10/100BASE-Tx, Auto-MDIX，RJ-45
– PoE: 802.3af(Cl- ss 3 – 6.49~12.95W)
– Passive Switch(short-circuit output): NC/NO Contacts, MAX 30V/1A AC/DC
– Active Switch output: 12V/700mA DC
– RFID/IC Card: EM4100 (125KHz)—-Standard MIFARE ONE (13.56MHz) —-Custom-made
– 1 Indoor door interface
– Main Chipset: Broadcom
– Speaker: 4Ω/3W
– Cables: CAT5 or better
– Power Supply: 12V/1A DC or PoE
– Shell material: Metal panel, ABS sump
– Protection level: IP65
– Working Temperature: -10~60℃
– Storage Temperature: -40~70℃
– Working Humidity: 10~90%
– Device Dimension: 160 x 93 x 35mm
– Package size: 178 x 104 x 55mm
– Device Weight: 300g
– Gross weight: 420g
